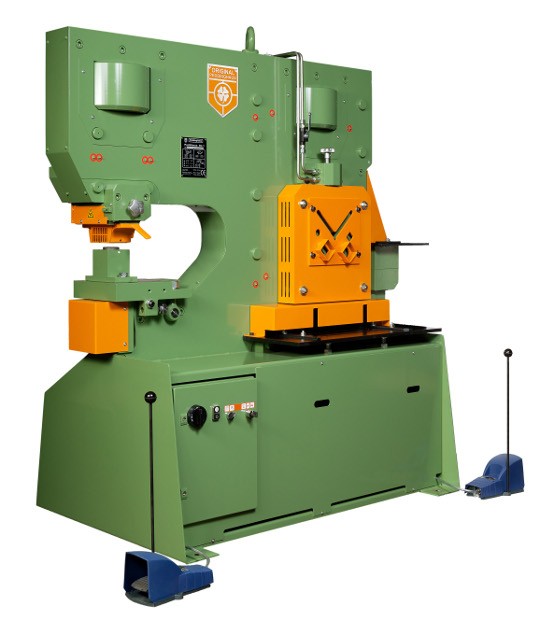

Peddinghaus steelworker Peddimax No. 1

Original-Peddinghaus
Combined Section Shear with
Punch Unit and Notcher

Peddimax No. 1

Peddimax No. 1

1250 kN

Technical Data

Flat Bar Shear
cuts flat bar with minimum distortion	up to mm	500 x 20 300 x 22
angle iron, 45° cut	up to mm	100 x 12
blade cut length	mm	510
work height	mm	720

Section and Bar Stock Shear
cross section	max. mm²	3500
stroke infinitely adjustable	mm	10-50
cuts with standard blades 90°:	mm	10-50
angle iron, 90° cut	up to mm	150 x 12
rounds	mm	50 + 25
squares	mm	50 + 30
cuts with special knives:	mm	50 + 30
channels, 90° cut	up to mm	200
I-beams, 90° cut	up to mm	200
work height (to centre of blades)	mm	1155

Notcher
with square notching attachment:
plate	up to mm	13
angle iron	up to mm	90 x 10
channels in flange	mm	80-160
I-beams in flange	mm	80-160
notch width	mm	65
notch depth	mm	85
with triangular notching attachment 90°:	mm	85
plate	up to mm	13
angle iron	up to mm	70 x 10
channels in flange	mm	80-160
I-beams in flange	mm	80-160
notch depth	mm	65
work height	mm	1100

Punch Unit
rated capacity	kN	1250
stroke infinitely adjustable	mm	10-50
number of strokes, punch unit, 20 mm	min^-1	29
throat depth	mm	510
work height	mm	1100
punches with standard punching attachment:	mm	1100
with flat die bolster	mm	Ø 39 in 24
with universal die block	mm	Ø 32 in 24
channels in flange	mm	100-380
I-beams in flange	mm	100-340
channels in web	mm	100-400
I-beams in web	mm	100-500
punches with oversize punching attachment	mm	100-500
• o.p.a. 58 / 65	up to mm	Ø 58 in 15
• o.p.a. 58 / 65	up to mm	Ø 65 in 14
• o.p.a. 90	up to mm	Ø 90 in 10

Machine Data
power rating	kW	11
charge of oil	l	103
net weight with oil	appr. kg	2750
overall machine dimensions	L x W x H cm	204x102x191
ref. no.	L x W x H cm	44600

All capacities refer to material with a tensile strength of 450 N/mm². We reserve the right to make design alterations without notice.

Standard Scope of Delivery

flat shear blades, 520 mm long, with four cutting edges, also for shearing
angle iron 45°
material support table with gauge stops on the flat shear station
section shear knife for shearing angle iron 90° as well as rounds and squares
quick-change punching attachment up to 39 mm Ø, for punches and dies
of the blue series or with universal die block for die no. 3
height-adjustable and swing-away stripper with exchangeable plate
square notching attachment
material support table on the notcher station
two two-stage foot pedals and electric control elements on the punch station
and notcher station
hydraulic low pressure spotter for foot operation
connecting sockets for external engagement, e. g. via electrical length stop
integrated hydraulic power-pack
three-phase A.C. motor, 400 Volt, 50 Hz
