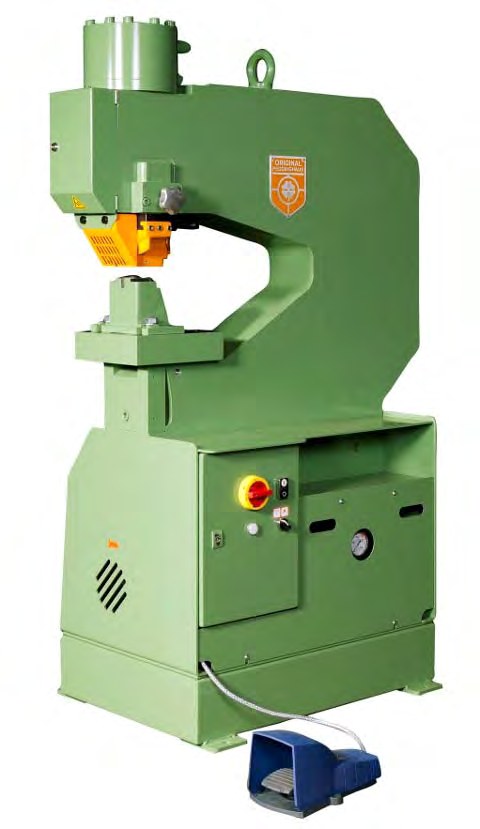

Peddinghaus punching machine Hydraulic 502

Original-PeddinghausPunching Machinewith Hydraulic Drive System

42270

rated capacity	kN	500
stroke	mm	32
stroke, adjustable	mm	10-32
number of strokes, 10 mm	mm -1	35
work height to die	mm	1070
fitting height	mm	350
throat depth	mm	510
width of flat die bolster	mm	255
punches with standard punching attachment
with flat die bolster	up to mm	Ø 31 in 12
with universal die block:
channels in flange	mm	100-300
I-beams in flange	mm	80-300
channels in web	mm	100-300
I-beams in web	mm	80-300
punches with oversize punching attachment
o.p.a. 58	up to mm	Ø 58 in 7
o.p.a. 65	up to mm	Ø 65 in 6
o.p.a. 90	up to mm	Ø 90 in 4
o.p.a.130	up to mm	Ø 130 in 3
Machine Data
power rating	kW	4
charge of oil	l	45
net weight with oil	approx. kg	1320
overall machine dimensions	L × W × H cm	108 × 65 × 168
ref. no.		42270
All capacities refer to material with a tensile strength of 450 N/mm 2 . We reserve the right to make design alterations without notice.

quick-change punching attachment up to 31 mm Ø, for punches and dies of the green series
flat die bolster or universal die block
height-adjustable and push-away stripper with exchangeable plate
hydraulic low pressure spotter for foot operation
two-stage foot pedal and electric control elements
intregrated hydraulic power pack
three-phase A.C. motor, 400 Volt, 50 Hz

513 material support table

524 structural gauging bar LML

542 gauging table, size 2

533 gauging system WBL 4/10, 4/10 Plus

556 CNC gauging system

316 tooling set, punches and dies
