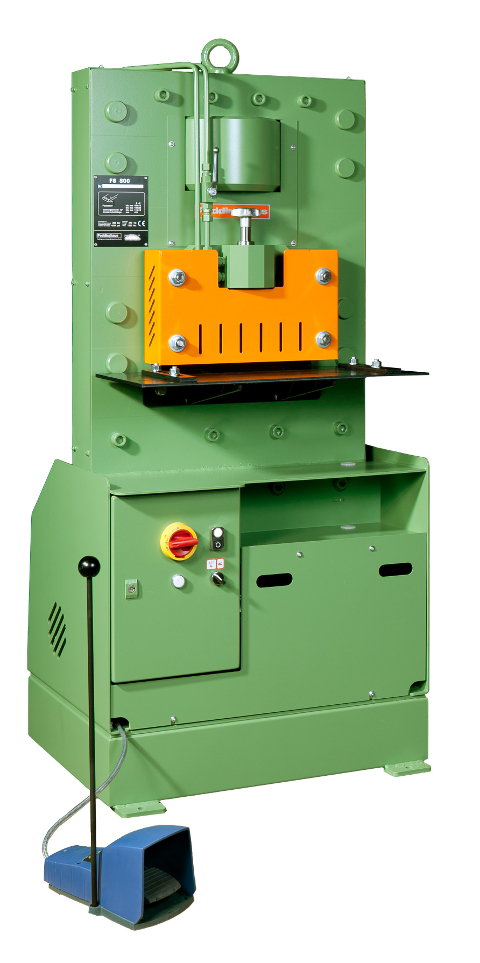

Original-PeddinghausFlat Shear withHydraulic Drive System
FS 800
Technical Data
flat bar shear
| cuts flat bar | up to mm | 400 × 18 |
| or | up to mm | 100 × 20 |
| mitre cut 45º | up to mm | 115 × 18 |
| blade cut length | mm | 425 |
| work height | mm | 920 |
| number of strokes, 20 mm | min -1 | 23 |
| stroke adjustment | mm | 10 - 42 |
| power rating | kW | 4 |
| charge of oil | l | 45 |
| net weight | approx. kg | 845 |
| overall machine dimensions | L × W × H cm | 73 × 69 × 160 |
| ref. no. | 45055 | |
| All capacities refer to material with a tensile strength of 450 N/mm 2 . We reserve the right to make design alterations without notice. |
522 electrical contact length stop
549 hydraulic hold-down
510 roller feed conveyor, 3 meters
Standard Scope of Delivery
- flat shear blades, 425 mm long, also for mitre cutting 45º
- material support table with two adjustable guides for precise angle cutting
- electric safety circuit; stroke movements that have been initiated can be interrupted in any position
- foot pedal and electric control elements
- connecting socket for electrical contact length stop
- integrated hydraulic power pack
- three-phase A.C. motor, 400 Volt, 50 Hz
